GRID

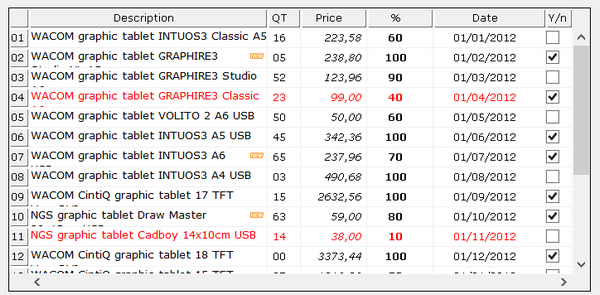

A Grid is a two-dimensional table. It can be customized to meet programmer's needs and cells can hold controls, such as Combo-Boxes, Push-Buttons and Entry-Fields.

Information is organized in rows and columns, and the cells are addressed by row and column coordinates.

Since each element of a Grid can be rendered with different colors and fonts and elements can be overlapped, priority rules are needed.

Colors are applied according to the following list of priorities. Items are listed from the most important to the least important:

•	Cursor-Color, Cursor-Foreground-Color, Cursor-Background-Color

•	Drag-Color, Drag-Foreground-Color, Drag-Background-Color

•	Region-Color, Region-Foreground-Color, Region-Background-Color

•	Cell-Color, Cell-Foreground-Color, Cell-Background-Color

•	Heading-Color, Heading-Foreground-Color, Heading-Background-Color

•	Row-Cursor-Color, Row-Cursor-Foreground-Color, Row-Cursor-Background-Color

•	Row-Color, Row-Foreground-Color, Row-Background-Color

•	Column-Color, Column-Foreground-Color, Column-Background-Color

•	Row-Color-Pattern, Row-Foreground-Color-Pattern, Row-Background-Color-Pattern

•	Color, Foreground-Color, Background-Color

Fonts are applied according to the following list of priorities. Items are listed from the most important to the least important:

•

Cell-Font

•	Heading-Font

•

Row-Font

•	Column-Font

•

Font

Protections are applied according to the following list of priorities. Items are listed from the most important to the least important:

•	Cell-Protection

•	Row-Protection

•	Column-Protection

•	Protection

Other graphical controls can be shown in Grid cells using the DISPLAY statement. The value of these controls becomes the Cell-Data of the cell.

The following program, creates a Grid control that uses Check-Boxes to display and accept data on the first column and Combo-boxes to accept data on the second column:

program-id. grid-sample.        working-storage section.        copy "iscrt.def".        copy "isgui.def".        77 MainWindow handle of window.        77 My-Combo-Box handle of combo-box occurs 10.        77 My-Check-Box handle of check-box occurs 10.        77 idx pic 9(2) value 0.        77 keystatus pic 9(5) special-names crt status.            88 esc value 27.        screen section.        01 Screen1.            03 My-Grid grid LINE 2, COL 2, SIZE 70 CELLS, LINES 5,               DISPLAY-COLUMNS (1, 11, 26, 46), NUM-ROWS 10,               hscroll vscroll               event procedure My-Grid-Event-Handler.        procedure division.        Main-Logic.            display standard graphical window background-low                  handle MainWindow            display Screen1            perform varying idx from 1 by 1 until idx > 10               display Check-Box                       handle My-Check-Box(idx)                       event check-evt                       upon My-Grid(idx, 1)               display Combo-Box lines 5                       handle My-Combo-Box(idx)                       ITEM-TO-ADD ("Item1", "Item2", "Item3",                                    "Item4", "Item5", "Item6")                       notify-selchange                       event combo-evt                       upon My-Grid(idx, 2)            end-perform            perform until esc               accept Screen1 on exception continue end-accept            end-perform            perform varying idx from 1 by 1 until idx > 10               destroy My-Check-Box(idx)               destroy My-Combo-Box(idx)            end-perform            stop run            .

My-Grid-Event-Handler.            display " grid event-type [" event-type "]"                    upon sysout            .        check-evt.            display " check-box event-type [" event-type "]"                    upon sysout            .        combo-evt.            display " combo-box event-type [" event-type "]"                    upon sysout            .

In order to create a control on each row of a column, the special value -1 can be used as y coordinate. According to the above example, this syntax

perform varying idx from 1 by 1 until idx > 10               display Check-Box                       handle My-Check-Box(idx)                       event check-evt                       upon My-Grid(idx, 1)               display Combo-Box lines 5                       handle My-Combo-Box(idx)                       ITEM-TO-ADD ("Item1", "Item2", "Item3",                                    "Item4", "Item5", "Item6")                       notify-selchange                       event combo-evt                       upon My-Grid(idx, 2)            end-perform

Could be rewritten as

display Check-Box handle My-Check-Box(idx) event check-evt upon My-Grid(-1, 1) display Combo-Box lines 5 handle My-Combo-Box(idx) ITEM-TO-ADD ("Item1", "Item2", "Item3", "Item4", "Item5", "Item6") notify-selchange event combo-evt upon My-Grid(-1, 2)

Note: Check-Box, Push-Button and Frame are shown permanently on the grid. Other controls are shown only when the user clicks on the cell. Pressing F4 when the focus is on the Combo-Box within a Grid cell doesn’t drop the list of values.

Controls can also be shown only during the editing of a cell by displaying them in the MSG-BEGIN-ENTRY event and destroying them in the MSG-FINISH-ENTRY event, as shown in the below example:

program-id. Grid1.        working-storage section.        copy "iscrt.def".        copy "isgui.def".        77  MainWindow      handle of window.        77  My-Combo-Box    handle of combo-box.        screen section.        01  Screen1.            03 My-Grid grid LINE 2, COL 2, SIZE 70 CELLS, LINES 5,               DISPLAY-COLUMNS (1, 11, 26, 46), NUM-ROWS 50,               event procedure My-Grid-Event-Handler.        procedure division.        Main-Logic.            display standard graphical window background-low                  handle MainWindow            display Screen1            perform until 1 = 2               accept Screen1 on exception continue end-accept            end-perform            stop run            .        My-Grid-Event-Handler.            evaluate event-type            when msg-begin-entry                 display Combo-Box lines 5                         handle My-Combo-Box                         ITEM-TO-ADD ("Item1", "Item2", "Item3",                                      "Item4", "Item5", "Item6")                         upon My-Grid(event-data-2, event-data-1)            when msg-finish-entry                 destroy My-Combo-Box            end-evaluate            .

Note: Controls cannot be displayed over heading cells.

Best practice for Check-Box handling

In order to have a response at every click on the Check-Box shown in Grid cells and avoid the runtime to consider some of the clicks as a go-to-cell actions, the best practice is to assign the Check-Box an Exception-Value and the Self-Act style and intercept the click as an exception of the ACCEPT of the screen. The following sample program demonstrates it:

program-id. GridCheck.        working-storage section.        copy "isgui.def".        copy "iscrt.def".        77  crt-status special-names crt status pic 9(5).        77  row pic 999.        01  rec.            03 c-1 pic 9   value 1.            03 c-2 pic xxx value "abc".                    screen section.        01  screen1.            03 g grid line 2 col 2 lines 10, size 10 cells               display-columns (1, 3) virtual-width 9               data-columns (record-position of c-1,                              record-position of c-2)                       .                                     procedure division.        main.            display standard graphical window.            display screen1.            display check-box upon g(-1, 1)                    self-act, exception-value 100.            modify g record-to-add rec.            modify g record-to-add rec.            perform until exit              accept screen1 exception crt-status continue end-accept              if crt-status = 100                 inquire g cursor-y row                 display "click on check-box in grid" upon sysout              end-if            end-perform.                        goback.
