COBOL SOAP consumer

In order to develop a COBOL SOAP consumer (client-side), to invoke SOAP Web Service, the COBOL program should take advantage of HTTPClient class. That class contains several useful methods to work with SOAP Web Service.

In the isCOBOL sample folder you find the folder eis/webservices/soap/client that contains an example of COBOL client program called "IP2GEO.cbl" that shows how to use a SOAP Web Service available over internet at http://ws.cdyne.com/ip2geo/ip2geo.asmx .

This service "Resolves IP addresses to Organization, Country, City, and State/Province, Latitude, Longitude. In most US cities it will also provide some extra information such as Area Code, and more."

A SOAP Web Service usually provides a way to inquire the functionality available and the parameters that should be used. To simplify the working storage definition able to manage the XML envelope, a the STREAM2WRK utility can be used.

That utility is able to read WSDL definition obtained adding ?WSDL to the Web Service URL definition, something like: http://ws.cdyne.com/ip2geo/ip2geo.asmx?WSDL generates the following working storage:

*> binding name=ResolveIP, style=document        01  soap-in-ResolveIP identified by 'soapenv:Envelope'.            03 identified by 'xmlns:soapenv' is attribute.             05 filler pic x(39) value 'http://www.w3.org/2003/05/soap-envelope'.            03 identified by 'xmlns:tns' is attribute.             05 filler pic x(20) value 'http://ws.cdyne.com/'.            03 identified by 'soapenv:Body'.                06 identified by 'tns:ResolveIP'.                 07 identified by 'tns:ipAddress'.                  08 a-ipAddress pic x any length.                 07 identified by 'tns:licenseKey'.                  08 a-licenseKey pic x any length.          01  soap-out-ResolveIP identified by 'Envelope'                  namespace 'http://www.w3.org/2003/05/soap-envelope'.            03 identified by 'Body'.                06 identified by 'ResolveIPResponse'                   namespace 'http://ws.cdyne.com/'.                 07 identified by 'ResolveIPResult'.                  08 identified by 'City'.                   09 a-City pic x any length.                  08 identified by 'StateProvince'.                   09 a-StateProvince pic x any length.                  08 identified by 'Country'.                   09 a-Country pic x any length.                  08 identified by 'Organization'.                   09 a-Organization pic x any length.                  08 identified by 'Latitude'.                   09 a-Latitude pic s9(16)v9(2).                  08 identified by 'Longitude'.                   09 a-Longitude pic s9(16)v9(2).                  08 identified by 'AreaCode'.                   09 a-AreaCode pic x any length.                  08 identified by 'TimeZone'.                   09 a-TimeZone pic x any length.                  08 identified by 'HasDaylightSavings'.                   09 a-HasDaylightSavings pic x any length.                  08 identified by 'Certainty'.                   09 a-Certainty pic s9(5).                  08 identified by 'RegionName'.                   09 a-RegionName pic x any length.                  08 identified by 'CountryCode'.                   09 a-CountryCode pic x any length.

This program has the objective to invoke the ResolveIP functionality providing the IP address and receiving some geographic information like City, State, Country, etc.

This program must take the following steps:

•	Include HTTPClient class in COBOL repository:

configuration section.        repository.            class http-client as "com.iscobol.rts.HTTPClient"

•	Include the working storage definition to use XML envelope generated from WSDL by STREAM2WRK utility:

WORKING-STORAGE SECTION.        copy "ip2geo.cpy".

•	Provide the IP address to obtain information and call the ResolveIP service using doPostEx() method passing the URL of service, the SOAP media type and the input envelope generated from STREAM2WRK for ResolveIP service:

move "209.235.175.10"   to a-ipAddress            http:>doPostEx (                            "http://ws.cdyne.com/ip2geo/ip2geo.asmx"                            "text/xml; charset=utf-8"                            soap-in-ResolveIP).

Note - The type "text/xml;charset=utf-8" is suitable for SOAP v1.1. If the service is SOAP v1.2, use "application/soap+xml; charset=utf-8" instead.

•	check the response if successful and show results:

http:>getResponseCode (response-code).            display "Response code: " response-code.            if response-code = 200               http:>getResponseXML (soap-ResolveIP-output)               display "City=" a-city               display "StateProvince=" a-stateProvince               display "Country=" a-country               display "Organization=" a-Organization               display "Latitude=" a-latitude               display "Longitude=" a-longitude               display "AreaCode=" a-areaCode               display "TimeZone=" a-timeZone               display "Daylight savings=" a-HasDaylightSavings               display "Certainty=" a-certainty               display "RegionName=" a-regionName               display "CountryCode=" a-countryCode

Compile the program with the command:

iscc IP2GEO.cbl

and run it with the command:

iscrun IP2GEO

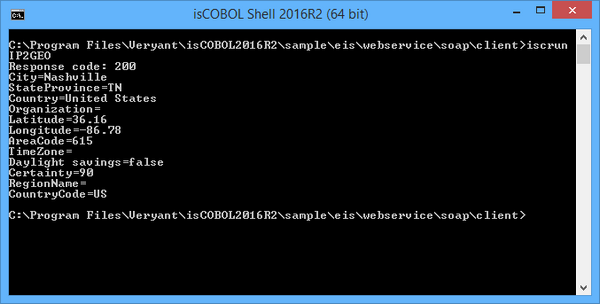

This is the result of execution of IP2GEO that consumes the ResolveIP SOAP Web Service:
