BITMAP

Events
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division.
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division.
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division.
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division.
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division.
msg-mouse-clicked event	Allows the user to create a paragraph to handle the MSG-MOUSE-CLICKED event in the Procedure Division.
msg-mouse-dblclick event	Allows the user to create a paragraph to handle the MSG-MOUSE-DBLCLICK event in the Procedure Division.
msg-mouse-entered event	Allows the user to create a paragraph to handle the MSG-MOUSE-ENTERED event in the Procedure Division.
msg-mouse-exited event	Allows the user to create a paragraph to handle the MSG-MOUSE-EXITED event in the Procedure Division.
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division.
other event	Allows the user to create a custom paragraph.
Exceptions
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above.
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above.
other exception	Allows the user to create a custom paragraph.
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE.
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE.
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE.
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE.
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn.
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
background-color	Opens a dialog that allows the user to choose the control background color.
bitmap	Opens a dialog box that allows the user to select an image file to load into the control.
bitmap end	Specifies the value for the Bitmap-End property.
bitmap-number	Specifies the value for the Bitmap-Number property.
bitmap scale	Specifies the value for the Bitmap-Scale property.
bitmap start	Specifies the value for the Bitmap-Start property.
bitmap timer	Specifies the value for the Bitmap-Timer property.
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
custom-data	Specifies the value for the Custom-Data property.
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
enabled	NONE...Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated

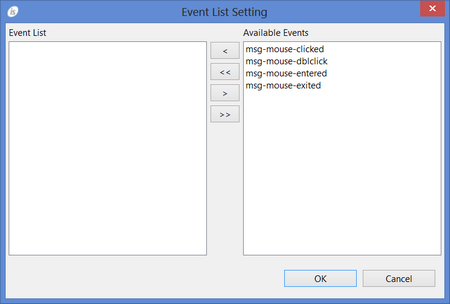

event list	Opens a dialog that allows to choose which events must be added to the event list of this control.
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.
height-in-cells	TRUE...The Height-In-Cells style is generated. FALSE... The Height-In-Cells style is not generated.
help-id	Specifies the control Help-id.
hint	Specifies the value for the Hint property.
id	Specifies the control id. This property is set automatically when the control is drawn.
key	Specifies the value for the Key property.
layout-data	Opens a dialog that allows the user to choose the control resize rules.
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn.
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn.
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting. None... Neither CELLS nor PIXELS are generated after the Lines value. CELLS... CELLS is generated after the Lines value. PIXELS... PIXELS is generated after the Lines value.
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse.
max-height	Specifies the control maximum height as expressed in cells.
max-width	Specifies the control maximum width as expressed in cells.
min-height	Specifies the control minimum height as expressed in cells.
min-width	Specifies the control minimum width as expressed in cells.
no-tab	TRUE...The No-Tab style is generated. FALSE...The No-Tab style is not generated.
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn.
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn.
size unit	DEFAULT... Either CELLS or nothing is generated after the Size value depending on the window’s “cell” property setting. None... Neither CELLS nor PIXELS are generated after the Size value. CELLS... CELLS is generated after the Size value. PIXELS... PIXELS is generated after the Size value.
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn.
transparent color	Specifies the value of the color to be used as transparent color. Unlike other color properties, no dialog is shown here, so you have to type the color code by hand.
visible	NONE...The Visible property is not generated. TRUE... Visible=1 is generated FALSE...Visible=0 is generated
width-in-cells	TRUE...The Width-In-Cells style is generated. FALSE... The Width-In-Cells style is not generated.
Variables
bitmap end variable	Numeric variable that hosts the value for the Bitmap-End property.
bitmap-number variable	Numeric variable that hosts the value for the Bitmap-Number property.
bitmap start value	Numeric variable that hosts the value for the Bitmap-Start property.
bitmap timer variable	Numeric variable that hosts the value for the Bitmap-Timer property.
color variable	Numeric variable that hosts the color value.
column variable	Numeric variable that hosts the column value.
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
enabled variable	Numeric variable that hosts the enabled state.
help-id variable	Numeric variable that hosts the help id.
hint variable	Alphanumeric variable that hosts the hint value.
id variable	Numeric variable that hosts the control id.
key variable	Alphanumeric variable that hosts the value for the Key property.
layout-data variable	Numeric variable that hosts the control resize rules.
lines variable	Numeric variable that hosts the lines value.
line variable	Numeric variable that hosts the line value.
max-height variable	Numeric variable that hosts the maximum height.
max-width variable	Numeric variable that hosts the maximum width.
min-height variable	Numeric variable that hosts the minimum height.
min-width variable	Numeric variable that hosts the minimum width.
size variable	Numeric variable that hosts the size value.
transparent color variable	Numeric variable that hosts the value for the Transparent-Color property.
visible variable	Numeric variable that hosts the visible state.
