CHECK BOX

Events
cmd-clicked event	Allows the user to create a paragraph to handle the CMD-CLICKED event in the Procedure Division
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-clicked exception	Allows the user to create a paragraph to handle the CMD-CLICKED event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
auto-fit	TRUE... The image is scaled in order to fit the control boundaries. This is achieved through additional code generated in the Procedure Division. FALSE...The image is shown as is, if it’s too large for control boundaries, it will be truncated.
background-color	Opens a dialog that allows the user to choose the control background color.
bitmap	Opens a dialog box that allows the user to select an image file to load into the control
bitmap-disabled	Specifies the value for the Bitmap-Disabled property
bitmap-disabled-selected	Specifies the value for the Bitmap-Disabled-Selected property
bitmap-frame	NONE... Neither Framed nor Unframed are generated FRAMED...The Framed style is generated UNFRAMED...The Unframed style is generated
bitmap-number	Specifies the value for the Bitmap-Number property
bitmap-pressed	Specifies the value for the Bitmap-Pressed property
bitmap-rollover	Specifies the value for the Bitmap-Rollover property
bitmap-rollover-selected	Specifies the value for the Bitmap-Rollover-Selected property
bitmap-selected	Specifies the value for the Bitmap-Selected property
bitmap-square	TRUE...The Square style is generated FALSE...The Square style is not generated
bitmap-width	Specifies the value for the Bitmap-Width property
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
custom-data	Specifies the value for the Custom-Data property.
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
enabled	NONE...Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated

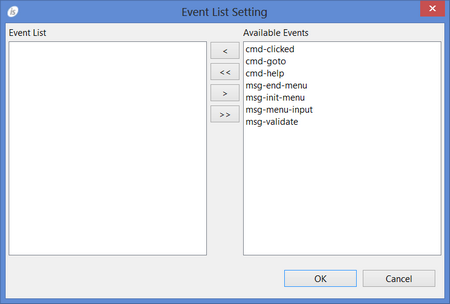

event list	Opens a dialog that allows to choose which events must be added to the event list of this control.
exception-value	Specifies the value for the Exception-Value property
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
flat	TRUE...The Flat style is generated FALSE...The Flat style is not generated
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.
height-in-cells	TRUE...The Height-In-Cells style is generated FALSE... The Height-In-Cells style is not generated
help-id	Specifies the control Help-id.
hint	Specifies the value for the Hint property.
id	Specifies the control id. This property is set automatically when the control is drawn.
key	Specifies the value for the Key property.
layout-data	Opens a dialog that allows the user to choose the control resize rules.
left-text	TRUE...The Left-Text style is generated FALSE...The Left-Text style is not generated
left-text-alignment	LEFT...Generates Left-Text-Alignment=1 RIGHT...Generates Left-Text-Alignment=0
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Lines value CELLS... CELLS is generated after the Lines value PIXELS... PIXELS is generated after the Lines value
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
max-height	Specifies the control maximum height as expressed in cells
max-width	Specifies the control maximum width as expressed in cells
min-height	Specifies the control minimum height as expressed in cells
min-width	Specifies the control minimum width as expressed in cells
multiline	TRUE...The Multiline style is generated FALSE...The Multiline style is not generated
no-tab	TRUE...The No-Tab style is generated FALSE...The No-Tab style is not generated
notify	TRUE...The Notify style is generated FALSE...The Notify style is not generated
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.
self-act	TRUE...The Self-Act style is generated FALSE...The Self-Act style is not generated
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn
size unit	DEFAULT... Either CELLS or nothing is generated after the Size value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Size value CELLS... CELLS is generated after the Size value PIXELS... PIXELS is generated after the Size value
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn
termination-value	Specifies the value for the Termination-Value property
title	Specifies the value for the Title property
title-position	0...NONE 1...LEFT 2...RIGHT 3...TOP 4...BOTTOM
value	Specifies the value for the Value property
visible	NONE...Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
vtop	TRUE...The Vtop style is generated FALSE...The Vtop style is not generated
width-in-cells	TRUE...The Width-In-Cells style is generated FALSE... The Width-In-Cells style is not generated
Variables
bitmap-disabled variable	Numeric variable that hosts the value for the Bitmap-Disabled property
bitmap-disabled-selected variable	Numeric variable that hosts the value for the Bitmap-Disabled-Selected property
bitmap-number variable	Numeric variable that hosts the value for the Bitmap-Number property
bitmap-pressed value	Numeric variable that hosts the value for the Bitmap-Pressed property
bitmap-rollover-selected variable	Numeric variable that hosts the value for the Bitmap-Rollover-Selected property
bitmap-rollover variable	Numeric variable that hosts the value for the Bitmap-Rollover property
bitmap-selected variable	Numeric variable that hosts the value for the Bitmap-Selected property
bitmap-width variable	Numeric variable that hosts the value for the Bitmap-Width property
color variable	Numeric variable that hosts the color value
column variable	Numeric variable that hosts the column value
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
enabled variable	Numeric variable that hosts the enabled state
exception-value variable	Numeric variable that hosts the value for the Exception-Value property
help-id variable	Numeric variable that hosts the help id
hint variable	Alphanumeric variable that hosts the value for the Hint property
id variable	Numeric variable that hosts the control id
key variable	Alphanumeric variable that hosts the value for the Key property
layout-data variable	Numeric variable that hosts the control resize rules
lines variable	Numeric variable that hosts the lines value
line variable	Numeric variable that hosts the line value
max-height variable	Numeric variable that hosts the maximum height
max-width variable	Numeric variable that hosts the maximum width
min-height variable	Numeric variable that hosts the minimum height
min-width variable	Numeric variable that hosts the minimum width
size variable	Numeric variable that hosts the size value
title variable	Numeric variable that hosts the value for the Title property
title-position variable	Numeric variable that hosts the value for the Title-Position property
value variable	Numeric variable that hosts the value for the Value property
visible variable	Numeric variable that hosts the visible state
