DATE ENTRY

Events
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division
ntf-changed event	Allows the user to create a paragraph to handle the NTF-CHANGED event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-changed exception	Allows the user to create a paragraph to handle the NTF-CHANGED event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
allow empty	TRUE...The Allow-Empty style is generated FALSE...The Allow-Empty style is not generated
background-color	Opens a dialog that allows the user to choose the control background color.
bitmap	Opens a dialog box that allows the user to select an image file to load into the control
bitmap-number	Specifies the value for the Bitmap-Number property
bitmap-width	Specifies the value for the Bitmap-Width property
calendar font	Opens a dialog that allows the user to choose the calendar font.
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
custom-data	Specifies the value for the Custom-Data property.
decoration background	Opens a dialog to retrieve the value for the Decoration-Background property
decoration background visible	TRUE...The Decoration-Background-Visible style is generated FALSE...The Decoration-Background-Visible style is not generated
decoration border visible	TRUE...The Decoration-Border-Visible style is generated FALSE...The Decoration-Border-Visible style is not generated
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
display format	Specifies the value for the Display-Format property
enabled	NONE...Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated

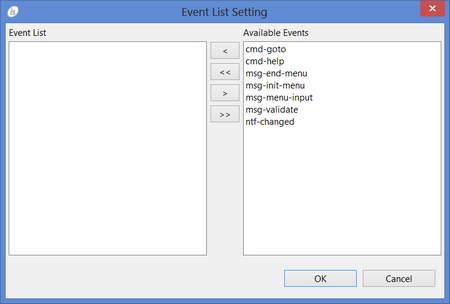

event list	Opens a dialog that allows to choose which events must be added to the event list of this control.
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.
height-in-cells	TRUE...The Height-In-Cells style is generated FALSE... The Height-In-Cells style is not generated
help-id	Specifies the control help-id.
hint	Specifies the value for the Hint property
id	Specifies the control id. This property is set automatically when the control is drawn.
key	Specifies the value for the Key property.
layout-data	Opens a dialog that allows the user to choose the control resize rules.
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Lines value CELLS... CELLS is generated after the Lines value PIXELS... PIXELS is generated after the Lines value
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
maxday characters	Specifies the value for the Maxday-Characters property. You can choose a value between 0 and 4
max-height	Specifies the control maximum height as expressed in cells
max-width	Specifies the control maximum width as expressed in cells
min-height	Specifies the control minimum height as expressed in cells
min-width	Specifies the control minimum width as expressed in cells
no F4	TRUE... The No-F4 style is generated FALSE... The No-F4 style is not generated
no-tab	TRUE...The No-Tab style is generated FALSE...The No-Tab style is not generated
notify change	TRUE...The Notify-Change style is generated FALSE...The Notify-Change style is not generated
no updown	TRUE...The No-Updown style is generated FALSE...The No-Updown style is not generated
numeric	TRUE...The Numeric style is generated FALSE...The Numeric style is not generated
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.
read-only	TRUE...The Read-Only style is generated FALSE...The Read-Only style is not generated
right align	TRUE...The Right-Align style is generated FALSE...The Right-Align style is not generated
self-act	TRUE...The Self-Act style is generated FALSE...The Self-Act style is not generated
show none	TRUE...The Show-None style is generated FALSE...The Show-None style is not generated
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn
size unit	DEFAULT... Either CELLS or nothing is generated after the Size value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Size value CELLS... CELLS is generated after the Size value PIXELS... PIXELS is generated after the Size value
spinner	TRUE...The Spinner style is generated FALSE...The Spinner style is not generated
style	CENTURY-DATE...The Century-Date style is generated LONG-DATE...The Long-Date style is generated SHORT-DATE...The Short-Date style is generated TIME...The Time style is generated
sunday foreground	Opens a dialog to retrieve the value for the Sunday-Foreground property
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn
value	Specifies the value for the Value property
value format	Allows the user to choose one of the following constant values: DAVF-YYYYMMDD DAVF-YYMMDD DAVF-HHMMSShh DAVF-HHMMSS DAVF-YYYYMMDDHHMMSShh DAVF-MMDDYYYY DAVF-MMDDYY DAVF-MMDDYYYYHHMMSShh DAVF-DDMMYYYY DAVF-DDMMYY DAVF-DDMMYYYYHHMMSShh
visible	NONE...Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
weekday foreground	Opens a dialog to retrieve the value for the Weekday-Foreground property
week of year visible	TRUE...The Week-Of-Year-Visible style is generated FALSE...The Week-Of-Year-Visible style is not generated
Variables
bitmap-number variable	Numeric variable that hosts the value for the Bitmap-Number property
bitmap-width variable	Numeric variable that hosts the value for the Bitmap-Width property
color variable	Numeric variable that hosts the color value
column variable	Numeric variable that hosts the column value
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
decoration background variable	Numeric variable that hosts the value for the Decoration-Background property
display format variable	Numeric variable that hosts the value for the Display-Format property
enabled variable	Numeric variable that hosts the enabled state
help-id variable	Numeric variable that hosts the help id
hint variable	Alphanumeric variable that hosts the hint value.
id variable	Numeric variable that hosts the control id
key variable	Alphanumeric variable that hosts the value for the Key property
layout-data variable	Numeric variable that hosts the control resize rules
lines variable	Numeric variable that hosts the lines value
line variable	Numeric variable that hosts the line value
maxday characters variable	Numeric variable that hosts the value for the Maxday-Characters property
max-height variable	Numeric variable that hosts the maximum height
max-width variable	Numeric variable that hosts the maximum width
min-height variable	Numeric variable that hosts the minimum height
min-width variable	Numeric variable that hosts the minimum width
size variable	Numeric variable that hosts the size value
sunday foreground variable	Numeric variable that hosts the value for the Sunday-Foreground property
value variable	Numeric variable that hosts the value for the Value property
visible variable	Numeric variable that hosts the visible state
weekday foreground variable	Numeric variable that hosts the value for the Weekday-Foreground property
