ENTRY FIELD

Events
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division
msg-bitmap-clicked event	Allows the user to create a paragraph to handle the MSG-BITMAP-CLICKED event in the Procedure Division
msg-bitmap-dblclick event	Allows the user to create a paragraph to handle the MSG-BITMAP-DBLCLICK event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division
ntf-changed event	Allows the user to create a paragraph to handle the NTF-CHANGED event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-changed exception	Allows the user to create a paragraph to handle the NTF-CHANGED event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn
action	Specifies the value for the Action property. You can choose between: None CUT COPY PASTE DELETE UNDO REDO SELECT ALL
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
alignment	NONE... no alignment style is generated LEFT... Left style is generated RIGHT... Right style is generated CENTER...Center style is generated HTML...no alignment style is generated
auto	TRUE... The Auto style is generated FALSE... The Auto style is not generated
autodecimal	Specifies the value for the Auto-Decimal property
background-color	Opens a dialog that allows the user to choose the control background color.
bitmap	pens a dialog box that allows the user to select an image file to load into the control
bitmap-disabled	Specifies the value for the Bitmap-Disabled property
bitmap-hint	Specifies the value for the Bitmap-Hint property
bitmap-number	Specifies the value for the Bitmap-Number property
bitmap-rollover	Specifies the value for the Bitmap-Rollover property
bitmap-trailing-disabled	Specifies the value for the Bitmap-Trailing-Disabled property
bitmap-trailing-hint	Specifies the value for the Bitmap-Trailing-Hint property
bitmap-trailing-number	Specifies the value for the Bitmap-Trailing-Number property
bitmap-trailing-rollover	Specifies the value for the Bitmap-Trailing-Rollover property
border	Allows the user to set one of the following three styles: 3-D BOXED NO-BOX
border-color	Opens a dialog that allows the user to choose the control border color.
case	NONE... Neither the Upper nor Lower styles are generated UPPER... Upper style is generated LOWER... Lower style is generated
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
cursor	Specifies the value for the Cusror property
cursor-col	Specifies the value for the Cusror-Col property
cursor-row	Specifies the value for the Cusror-Row property
custom-data	Specifies the value for the Custom-Data property.
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
enabled	NONE...Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated
event list	Opens a dialog that allows to choose which events must be added to the event list of this control.
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
fill-char	Specifies the value for the Fill-Char property
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.
format-picture	Specifies the value for the Pic property
format-string	Specifies the value for the Format-String property
format-type	Specifies the value for the Format-Type property 0... MASK 1... NUMBER 2... DATE
height-in-cells	TRUE...The Height-In-Cells style is generated FALSE... The Height-In-Cells style is not generated
help-id	Specifies the control Help-id.
hint	Specifies the value for the Hint property.
id	Specifies the control id. This property is set automatically when the control is drawn.
key	Specifies the value for the Key property.
layout-data	Opens a dialog that allows the user to choose the control resize rules.
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Lines value CELLS... CELLS is generated after the Lines value PIXELS... PIXELS is generated after the Lines value
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
max-height	Specifies the control maximum height as expressed in cells
max-lines	Specifies the value for the Max-Lines property
max-text	Specifies the value for the Max-Text property
max-val	Specifies the value for the Max-Val property
max-width	Specifies the control maximum width as expressed in cells
min-height	Specifies the control minimum height as expressed in cells
min-val	Specifies the value for the Min-Val property
min-width	Specifies the control minimum width as expressed in cells
no -autosel	TRUE... The No-Autosel style is generated FALSE... The No-Autosel style is not generated
no-tab	TRUE...The No-Tab style is generated FALSE...The No-Tab style is not generated
notify change	TRUE...The Notify-Change style is generated FALSE...The Notify-Change style is not generated
notify-change delay	Specifies the value for the Notify-Change-Delay property
no-wrap	TRUE...The No-Wrap style is generated FALSE...The No-Wrap style is not generated
numeric	TRUE...The Numeric style is generated FALSE...The Numeric style is not generated
placeholder	Specifies the value for the Placeholder property
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.

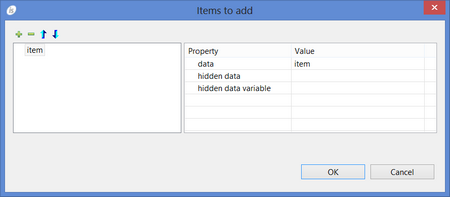

proposal	Opens a dialog that allows the user to declare proposal items
proposal delay	Specifies the value for the Proposal-Delay property
proposal min text	Specifies the value for the Proposal-Min-Text property
proposals-unsorted	TRUE...The Proposals-Unsorted style is generated FALSE...The Proposals-Unsorted style is not generated
read-only	TRUE...The Read-Only style is generated FALSE...The Read-Only style is not generated
required	TRUE...The Required style is generated FALSE...The Required style is not generated
secure	TRUE...The Secure style is generated FALSE...The Secure style is not generated
selection-start	Specifies the value for the Selection-Start property
selection-start-col	Specifies the value for the Selection-Start-Col property
selection-start-row	Specifies the value for the Selection-Start-Row property
selection-text	Specifies the value for the Selection-Text property
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn
size unit	DEFAULT... Either CELLS or nothing is generated after the Size value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Size value CELLS... CELLS is generated after the Size value PIXELS... PIXELS is generated after the Size value
style	Allows the user to choose the type of field between: SINGLELINE (default) MULTILINE VSCROLL VSCROLL-BAR SPINNER AUTO-SPIN
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn
spell checking	Sets the value for the Spell-Checking property.   Note that additional jar files must be added to the Project’s Classpath in order to activate this feature at run time. Refer to Spell-Checking for details about the required additional items.
text orientation	0: NONE... Text-Orientation is not generated 1: LEFT-TO-RIGHT...Text-Orientation=1 is generated 2: RIGHT-TO-LEFT...Text-Orientation=2 is generated
use RETURN	TRUE... The Use-Return style is generated FALSE... The Use-Return style is not generated
use TAB	TRUE... The Use-Tab style is generated FALSE... The Use-Tab style is not generated
validation error message	Specifies the value for the Validation-Errmsg property
validation options	0: None 1: Case Insensitive 2: Left Trimmed 3: Case Insensitive + Left Trimmed 4: Right Trimmed 5: Case Insensitive + Right Trimmed 6: Left Trimmed + Right Trimmed 7: Case Insensitive + Left Trimmed+ Right Trimmed
validation regexp	Specifies the value for the Validation-Regexp property
value	Specifies the value for the Value property
value multiple	TRUE... The Multiple keyword is generated along with Value FALSE... The Multiple keyword is not generated along with Value
value picture	Specifies the value for the PIC property
visible	NONE...Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
visible proposals count	Specifies the value for the Visible-Proposals-Count property
width-in-cells	TRUE...The Width-In-Cells style is generated FALSE... The Width-In-Cells style is not generated
Variables
autodecimal variable	Numeric variable that hosts the value for the Auto-Decimal property
color variable	Numeric variable that hosts the color value
column variable	Numeric variable that hosts the column value
cursor-col variable	Numeric variable that hosts the cursor column value
cursor-row variable	Numeric variable that hosts the cursor row value
cursor variable	Numeric variable that hosts the cursor value
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
enabled variable	Numeric variable that hosts the enabled state
help-id variable	Numeric variable that hosts the help id
hint variable	Alphanumeric variable that hosts the hint value.
id variable	Numeric variable that hosts the control id
key variable	Alphanumeric variable that hosts the value for the Key property
layout-data variable	Numeric variable that hosts the control resize rules
lines variable	Numeric variable that hosts the lines value
line variable	Numeric variable that hosts the line value
max-height variable	Numeric variable that hosts the maximum height
max-lines variable	Numeric variable that hosts the value for the Max-Lines property
max-text variable	Numeric variable that hosts the value for the Max-Text property
max-val variable	Numeric variable that hosts the value for the Max-Val property
max-width variable	Numeric variable that hosts the maximum width
min-height variable	Numeric variable that hosts the minimum height
min-val variable	Numeric variable that hosts the value for the Min-Val property
min-width variable	Numeric variable that hosts the minimum width
notify-change delay variable	Numeric variable that hosts the value for the Notify-Change-Delay property
placeholder variable	Alphanumeric variable that hosts the value of the Placeholder property
proposal delay variable	Numeric variable that hosts the value for the Proposal-Delay property
proposal min text variable	Numeric variable that hosts the value for the Proposal-Min-Text property
selection-start-col variable	Numeric variable that hosts the value for the Selection-Start-Col property
selection-start-row variable	Numeric variable that hosts the value for the Selection-Start-Row property
selection-start variable	Numeric variable that hosts the value for the Selection-Start property
size variable	Numeric variable that hosts the size value
validation error message variable	Alphanumeric variable that hosts the value of the Validation-Errmsg property
validation options variable	Numeric variable that hosts the value of the Validation-Opts property
validation regexp variable	Alphanumeric variable that hosts the value of the Validation-Regexp property
value variable	Alphanumeric variable that hosts the value for the Value property
visible variable	Numeric variable that hosts the visible state
