GRID

Events
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division
msg-begin-drag event	Allows the user to create a paragraph to handle the MSG-BEGIN-DRAG event in the Procedure Division
msg-begin-entry event	Allows the user to create a paragraph to handle the-MSG-BEGIN-ENTRY event in the Procedure Division
msg-begin-heading-drag event	Allows the user to create a paragraph to handle the MSG-BEGIN-HEADING-DRAG event in the Procedure Division
msg-begin-sort event	Allows the user to create a paragraph to handle the MSG-BEGIN-SORT event in the Procedure Division
msg-bitmap-clicked	Allows the user to create a paragraph to handle the MSG-BITMAP-CLICKED event in the Procedure Division
msg-bitmap-dblclick	Allows the user to create a paragraph to handle the MSG-BITMAP-DBLCLICK event in the Procedure Division
msg-cancel-entry	Allows the user to create a paragraph to handle the MSG-CANCEL-ENTRY event in the Procedure Division
msg-col-width-changed	Allows the user to create a paragraph to handle the MSG-COL-WIDTH-CHANGED event in the Procedure Division
msg-end-drag event	Allows the user to create a paragraph to handle the MSG-END-DRAG event in the Procedure Division
msg-end-heading-drag event	Allows the user to create a paragraph to handle the MSG-END-HEADING-DRAG event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-finish-entry event	Allows the user to create a paragraph to handle the MSG-FINISH-ENTRY event in the Procedure Division
msg-finish-sort event	Allows the user to create a paragraph to handle the MSG-FINISH-SORT event in the Procedure Division
msg-gd-dblclick event	Allows the user to create a paragraph to handle the MSG-GD-DBLCLICK event in the Procedure Division
msg-goto-cell-drag event	Allows the user to create a paragraph to handle the MSG-GOTO-CELL-DRAG event in the Procedure Division
msg-goto-cell event	Allows the user to create a paragraph to handle the MSG-GOTO-CELL event in the Procedure Division
msg-goto-cell-mouse event	Allows the user to create a paragraph to handle the MSG-GOTO-CELL-MOUSE event in the Procedure Division
msg-goto-cell-out-next event	Allows the user to create a paragraph to handle the MSG-GOTO-CELL-OUT-NEXT event in the Procedure Division
msg-goto-cell-out-prev event	Allows the user to create a paragraph to handle the MSG-GOTO-CELL-OUT-PREV event in the Procedure Division
msg-grid-rbutton-down event	Allows the user to create a paragraph to handle the MSG-GRID-RBUTTON-DOWN event in the Procedure Division
msg-grid-rbutton-up event	Allows the user to create a paragraph to handle the MSG-GRID-RBUTTON-UP event in the Procedure Division
msg-heading-clicked event	Allows the user to create a paragraph to handle the MSG-HEADING-CLICKED event in the Procedure Division
msg-heading-dblclick event	Allows the user to create a paragraph to handle the MSG-HEADING-DBLCLICK event in the Procedure Division
msg-heading-dragged event	Allows the user to create a paragraph to handle the MSG-HEADING-DRAGGED event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
msg-paged-first event	Allows the user to create a paragraph to handle the MSG-PAGED-FIRST event in the Procedure Division
msg-paged-last event	Allows the user to create a paragraph to handle the MSG-PAGED-LAST event in the Procedure Division
msg-paged-next event	Allows the user to create a paragraph to handle the MSG-PAGED-NEXT event in the Procedure Division
msg-paged-nextpage event	Allows the user to create a paragraph to handle the MSG-PAGED-NEXTPAGE event in the Procedure Division
msg-paged-prev event	Allows the user to create a paragraph to handle the MSG-PAGED-PREV event in the Procedure Division
msg-paged-prevpage event	Allows the user to create a paragraph to handle the MSG-PAGED-PREVPAGE event in the Procedure Division
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn
action	Specifies the value for the Action property. You can choose between: None FIRST-PAGE LAST-PAGE CURRENT-PAGE
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
adjustable-columns	TRUE... The Adjustable-Columns style is generated FALSE... The Adjustable-Columns style is not generated
adjustable-rows	TRUE... The Adjustable-Rows style is generated FALSE... The Adjustable-Rows style is not generated
background-color	Opens a dialog that allows the user to choose the control background color.
border	Allows the user to set one of the following three styles: 3-D BOXED NO-BOX
border-color	Opens a dialog that allows the user to choose the control border color.
cell entry background color	Opens a dialog that allows to set the Cell-Entry-Background-Color property.
cell entry color	Opens a dialog that allows to set the Cell-Entry-Color property.
cell entry foreground color	Opens a dialog that allows to set the Cell-Entry-Foreground-Color property.
cell selected background color	Opens a dialog that allows to set the Cell-Selected-Background-Color property.
cell selected color	Opens a dialog that allows to set the Cell-Selected-Color property.
cell selected foreground color	Opens a dialog that allows to set the Cell-Selected-Foreground-Color property.

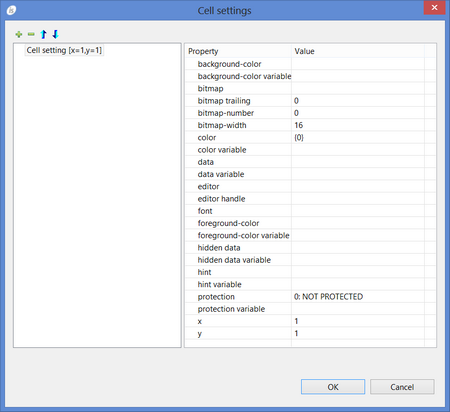

cell settings	Opens a dialog that allows the user to set cells content   The “editor” property pops up a new dialog in which you can choose the graphical control that must appear in the cell during the editing.
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column headings	TRUE... The Column-Headings style is generated FALSE... The Column-Headings style is not generated
column headings height	Specifies the value for the Column-Headings-Height property.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
column selected background color	Opens a dialog that allows to set the Column-Selected-Background-Color property.
column selected color	Opens a dialog that allows to set the Column-Selected-Color property.
column selected foreground color	Opens a dialog that allows to set the Column-Selected-Foreground-Color property.
column settings	Opens a dialog that allows the user to define columns
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
cursor color	Opens a dialog that allows the user to choose the cursor color.
cursor frame width	Specifies the value for the Cursor-Frame-Width property
cursor X	Specifies the value for the Cursor-X property
cursor Y	Specifies the value for the Cursor-Y property
custom-data	Specifies the value for the Custom-Data property.
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
divider color	Opens a dialog to retrieve the value for the Divider-Color property
drag color	Opens a dialog to retrieve the value for the Drag-Color property
enabled	NONE...The Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated
end color	Opens a dialog to retrieve the value for the End-Color property
event list	Opens a dialog that allows to choose which events must be added to the event list of this control.
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
export file format	Specifies the value for the Export-File-Format property.
export file name	Specifies the value for the Export-File-Name property.
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.

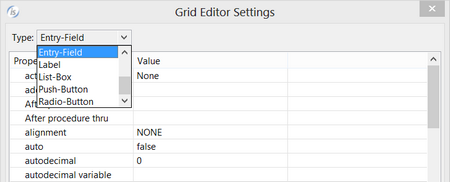

generate editor code	on Msg-Begin-Entry...The cell editor control will be displayed only when the cell is edited on Display... The cell editor control will be displayed on each cell as the grid appears
heading color	Opens a dialog to retrieve the value for the Heading-Color property
heading divider color	Opens a dialog to retrieve the value for the Heading-Divider-Color property
heading font	Opens a dialog that allows the user to choose the heading font.

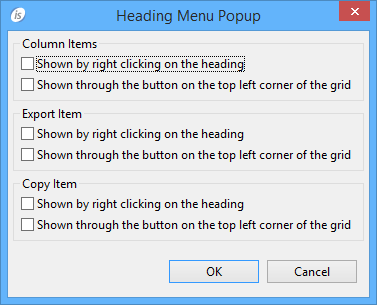

heading menu popup	Opens a dialog that allows to configure the Grid heading menu.
height-in-cells	TRUE...The Height-In-Cells style is generated FALSE... The Height-In-Cells style is not generated
help-id	Specifies the control Help-id.
hint	Specifies the value for the Hint property.
hscroll	TRUE... The Hscroll style is generated FALSE... The Hscroll style is not generated
id	Specifies the control id. This property is set automatically when the control is drawn.
key	Specifies the value for the Key property.
last-row	Specifies the value for the Last-Row property
layout-data	Opens a dialog that allows the user to choose the control resize rules.
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Lines value CELLS... CELLS is generated after the Lines value PIXELS... PIXELS is generated after the Lines value
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
lm-on-columns	NONE... Lm-On-Columns is not generated TRUE... Lm-On-Columns=1 is generated FALSE... Lm-On-Columns=0 is generated
mass-update	TRUE... Mass-Update=1 is generated FALSE... Mass-Update property is not generated
max-height	Specifies the control maximum height as expressed in cells
max-width	Specifies the control maximum width as expressed in cells
min-height	Specifies the control minimum height as expressed in cells
min-width	Specifies the control minimum width as expressed in cells
mouse-wheel-scroll	Specifies the value for the Mouse-Wheel-Scroll property
no-cell-drag	TRUE...The No-Cell-Drag style is generated FALSE...The No-Cell-Drag style is not generated
no-autosel	TRUE...The No-Autosel style is generated FALSE...The No-Autosel style is not generated
no-search	TRUE...The No-Search style is generated FALSE...The No-Search style is not generated
no-tab	TRUE...The No-Tab style is generated FALSE...The No-Tab style is not generated
num col headings	Specifies the value for the Num-Col-Headings property
num row headings	Specifies the value for the Num-Row-Headings property
num columns	Specifies the number of columns in the grid. Use column settings to configure the single columns.
num rows	Specifies the value for the Num-Rows property
paged	TRUE...The Paged style is generated FALSE... The Paged style is not generated
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.
protection	Specifies the value for the Protection property

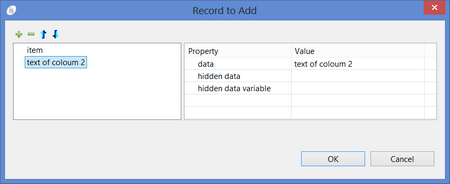

record-to-add	Opens a dialog that allows the user to describe the record
region color	Opens a dialog to retrieve the value for the Region-Color property
reordering columns	TRUE...The Reordering-Columns style is generated FALSE...The Reordering-Columns style is not generated
row color patterns	Opens a dialog that allows the user to define a row color pattern
row cursor background color	Opens a dialog that allows you to set the Row-Cursor-Background-Color property
row cursor color	Opens a dialog that allows you to set the Row-Cursor-Color property
row cursor foreground color	Opens a dialog that allows you to set the Row-Cursor-Foreground-Color property
row dividers	Specifies the value for the Row-Dividers property
row headings	TRUE...The Row-Headings style is generated FALSE...The Row-Headings style is not generated
row selected background color	Opens a dialog that allows to set the Row-Selected-Background-Color property.
row selected color	Opens a dialog that allows to set the Row-Selected-Color property.
row selected foreground color	Opens a dialog that allows to set the Row-Selected-Foreground-Color property.

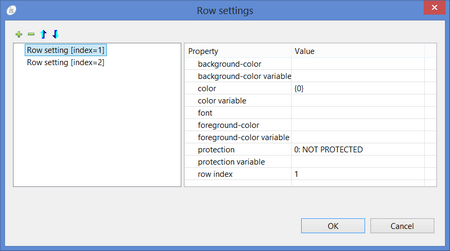

row settings	Opens a dialog that allows the user to configure rows characteristics
rows-per-page	Specifies the value for the Rows-Per-Page property

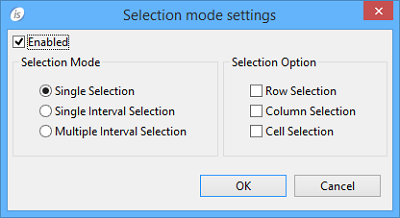

selection mode	Opens a dialog that allows to set the Selection-Mode property.
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn
size unit	DEFAULT... Either CELLS or nothing is generated after the Size value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Size value CELLS... CELLS is generated after the Size value PIXELS... PIXELS is generated after the Size value
sortable columns	TRUE...The Sortable-Columns style is generated FALSE...The Sortable-Columns style is not generated
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn
tiled heading	TRUE... The Tiled-Headings style is generated FALSE... The Tiled-Headings style is not generated
use TAB	TRUE... The Use-Tab style is generated False... The Use-Tab style is not generated
virtual width	Specifies the value for the Virtual-Width property
visible	NONE...Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
vpadding	Specifies the value for the Vpadding property
vscroll	TRUE...The Vscroll style is generated FALSE...The Vscroll style is not generated
width-in-cells	TRUE...The Width-In-Cells style is generated FALSE... The Width-In-Cells style is not generated
Variables
background-color variable	Numeric variable that hosts the value for the Background-Color property.
border color variable	Numeric variable that hosts the value for the Border-Color property.
cell-entry background color variable	Numeric variable that hosts the value for the Cell-Entry-Background-Color property.
cell-entry color variable	Numeric variable that hosts the value for the Cell-Entry-Color property.
cell-entry foreground color variable	Numeric variable that hosts the value for the Cell-Entry-Foreground-Color property.
cell selected background color variable	Numeric variable that hosts the value for the Cell-Selected-Background-Color property.
cell selected color variable	Numeric variable that hosts the value for the Cell-Selected-Color property.
cell selected foreground color variable	Numeric variable that hosts the value for the Cell-Selected-Foreground-Color property.
color variable	Numeric variable that hosts the color value
column headings height variable	Numeric variable that hosts the value for the Column-Headings-Height property.
column variable	Numeric variable that hosts the column value
cursor color variable	Numeric variable that hosts the value for the Cursor-Color property
cursor frame width variable	Numeric variable that hosts the value for the Cursor-Frame-Width property
cursor X variable	Numeric variable that hosts the value for the Cursor-X property
cursor Y variable	Numeric variable that hosts the value for the Cursor-Y property
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
divider color variable	Numeric variable that hosts the value for the Divider-Color property
drag color variable	Numeric variable that hosts the value for the Drag-Color property
enabled variable	Numeric variable that hosts the enabled state
end color variable	Numeric variable that hosts the value for the End-Color property
heading color variable	Numeric variable that hosts the value for the Heading-Color property
heading divider color variable	Numeric variable that hosts the value for the Heading-Divider-Color property
help-id variable	Numeric variable that hosts the help id
hint variable	Alphanumeric variable that hosts the hint value.
id variable	Numeric variable that hosts the control id
key variable	Alphanumeric variable that hosts the value for the Key property
last-row variable	Numeric variable that hosts the value for the Last-Row property
layout-data variable	Numeric variable that hosts the control resize rules
lines variable	Numeric variable that hosts the lines value
line variable	Numeric variable that hosts the line value
mass-update variable	Numeric variable that hosts the value for the Mass-Update property
max-height variable	Numeric variable that hosts the maximum height
max-width variable	Numeric variable that hosts the maximum width
min-height variable	Numeric variable that hosts the minimum height
min-width variable	Numeric variable that hosts the minimum width
num col headings variable	Numeric variable that hosts the value for the Num-Col-Headings property
num rows variable	Numeric variable that hosts the value for the Num-Rows property
protection variable	Numeric variable that hosts the value for the Protection property
record data	Numeric variable that hosts the value for the Record-Data property
record-to-add variable	Numeric variable that hosts the value for the Record-To-Add property
region color variable	Numeric variable that hosts the value for the Region-Color property
size variable	Numeric variable that hosts the size value
value container	occurs item that hosts control items
virtual width variable	Numeric variable that hosts the value for the Virtual-Width property
visible variable	Numeric variable that hosts the visible state
vpadding variable	Numeric variable that hosts the value for the Vpadding property
