JAVA BEAN

Events
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-jb-event event	Allows the user to create a paragraph to handle the MSG-JB-EVENT event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE
Initialization routine	Allows the user to create a paragraph to handle the control initialization
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
background-color	Opens a dialog that allows the user to choose the control background color.
bitmap	Opens a dialog box that allows the user to select an image file to load into the control
bitmap-width	Specifies the value for the Bitmap-Width property
border	Allows the user to choose between one of the following styles: 3-D BOXED NO-BOX
border-color	Opens a dialog that allows the user to choose the control border color.
CLSID	Specifies the value for the CLSID property
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
custom-data	Specifies the value for the Custom-Data property.
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
enabled	NONE...Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated

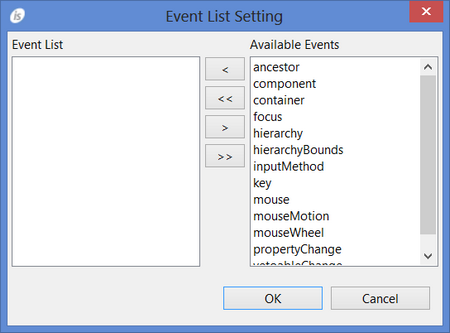

event list	Opens a dialog that allows to choose which events must be added to the event list of this control. The content depends on the CLSID property.
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.
height-in-cells	TRUE...The Height-In-Cells style is generated FALSE... The Height-In-Cells style is not generated
help-id	Specifies the control Help-id.
hint	Specifies the value for the Hint property.
hscroll	TRUE...The Hscroll style is generated FALSE...The Hscroll style is not generated
id	Specifies the control id. This property is set automatically when the control is drawn.

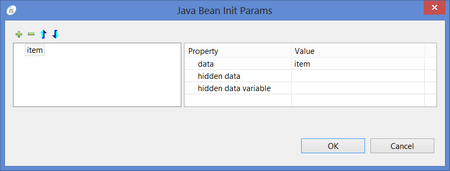

init parameters	Opens a dialog that allows the user to set the init parameters
init signature	Specifies the value for the Init-Signature property
key	Specifies the value for the Key property.
layout-data	Opens a dialog that allows the user to choose the control resize rules.
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Lines value CELLS... CELLS is generated after the Lines value PIXELS... PIXELS is generated after the Lines value
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
max-height	Specifies the control maximum height as expressed in cells
max-width	Specifies the control maximum width as expressed in cells
min-height	Specifies the control minimum height as expressed in cells
min-width	Specifies the control minimum width as expressed in cells
no-tab	TRUE...The No-Tab style is generated FALSE...The No-Tab style is not generated
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn
use ALT	TRUE...The Use-Alt style is generated FALSE...The Use-Alt style is not generated
use RETURN	TRUE...The Use-Return style is generated FALSE...The Use-Return style is not generated
use TAB	TRUE...The Use-Tab style is generated FALSE...The Use-Tab style is not generated
visible	NONE...Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
vscroll	TRUE...The Vscroll style is generated FALSE...The Vscroll style is not generated
width-in-cells	TRUE...The Width-In-Cells style is generated FALSE... The Width-In-Cells style is not generated
Variables
bitmap-width variable	Numeric variable that hosts the value for the Bitmap-Width property
CLSID variable	Alphanumeric variable that hosts the value for the CLSID property
color variable	Numeric variable that hosts the color value
column variable	Numeric variable that hosts the column value
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
enabled variable	Numeric variable that hosts the enabled state
help-id variable	Numeric variable that hosts the help id
hint variable	Alphanumeric variable that hosts the hint value.
id variable	Numeric variable that hosts the control id
key variable	Alphanumeric variable that hosts the value for the Key property
layout-data variable	Numeric variable that hosts the control resize rules
lines variable	Numeric variable that hosts the lines value
line variable	Numeric variable that hosts the line value
max-height variable	Numeric variable that hosts the maximum height
max-width variable	Numeric variable that hosts the maximum width
min-height variable	Numeric variable that hosts the minimum height
min-width variable	Numeric variable that hosts the minimum width
object in	Alphanumeric variable that hosts the object logical name
size variable	Numeric variable that hosts the size value
visible variable	Numeric variable that hosts the visible state
