LIST BOX

Events
cmd-dblclick event	Allows the user to create a paragraph to handle the CMD-DBLCLICK event in the Procedure Division
cmd-goto event	Allows the user to create a paragraph to handle the CMD-GOTO event in the Procedure Division
cmd-help event	Allows the user to create a paragraph to handle the CMD-HELP event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
msg-validate event	Allows the user to create a paragraph to handle the MSG-VALIDATE event in the Procedure Division
ntf-pl-first event	Allows the user to create a paragraph to handle the MSG-PL-FIRST event in the Procedure Division
ntf-pl-last event	Allows the user to create a paragraph to handle the NTF-PL-LAST event in the Procedure Division
ntf-pl-next event	Allows the user to create a paragraph to handle the NTF-PL-NEXT event in the Procedure Division
ntf-pl-nextpage event	Allows the user to create a paragraph to handle the NTF-PL-NEXTPAGE event in the Procedure Division
ntf-pl-prev event	Allows the user to create a paragraph to handle the NTF-PL-PREV event in the Procedure Division
ntf-pl-prevpage event	Allows the user to create a paragraph to handle the NTF-PL-PREVPAGE event in the Procedure Division
ntf-pl-search event	Allows the user to create a paragraph to handle the NTF-PL-SEARCH event in the Procedure Division
ntf-selchange-event	Allows the user to create a paragraph to handle the NTF-SELCHANGE event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-dblclick exception	Allows the user to create a paragraph to handle the CMD-DBLCLICK event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-goto exception	Allows the user to create a paragraph to handle the CMD-GOTO event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-help exception	Allows the user to create a paragraph to handle the CMD-HELP event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-first exception	Allows the user to create a paragraph to handle the NTF-PL-FIRST event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-last exception	Allows the user to create a paragraph to handle the NTF-PL-LAST event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-next exception	Allows the user to create a paragraph to handle the NTF-PL-NEXT event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-nextpage exception	Allows the user to create a paragraph to handle the NTF-PL-NEXTPAGE event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-prev exception	Allows the user to create a paragraph to handle the NTF-PL-PREV event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-prevpage exception	Allows the user to create a paragraph to handle the NTF-PL-PREVPAGE event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-pl-search exception	Allows the user to create a paragraph to handle the NTF-PL-SEARCH event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-selchange exception	Allows the user to create a paragraph to handle the NTF-SELCHANGE event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After procedure	Allows the user to create a paragraph to handle the control AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
Before procedure	Allows the user to create a paragraph to handle the control BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Event procedure	Allows the user to create a paragraph to handle the control EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the control EXCETPION PROCEDURE
Link To	Associates a paragraph with the control that will be executed when the control is double clicked
Properties
(name)	Specifies the control name. This property is set automatically when the control is drawn
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
background-color	Opens a dialog that allows the user to choose the control background color.
border	Allows the user to set one of the following three styles: 3-D BOXED NO-BOX
border-color	Opens a dialog that allows the user to choose the control border color.
case	None....Neither the Upper nor Lower styles are generated UPPER....Upper style is generated LOWER...Lower style is generated
color	Opens a dialog that allows the user to choose the control color.
column	Specifies the X coordinate of the control as expressed in cells. This property is set automatically when the control is drawn.
column pixels	Specifies the X coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn.

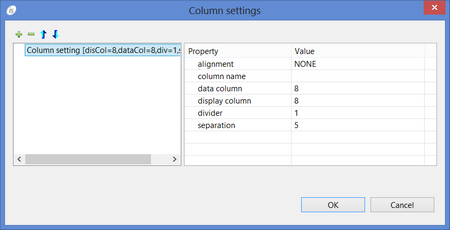

column settings	Opens a dialog that allows the user to define columns
css-base-style-name css-style-name	Specify the CSS style associated with the control. It works only in a Web Direct 2 environment. See Customize the EIS WD2 Layout through CSS for more information.
custom-data	Specifies the value for the Custom-Data property.
destroy type	AUTOMATIC...neither the Temporary nor Permanent styles are generated TEMPORARY...Temporary style is generated PERMANENT...Permanent style is generated
enabled	NONE...Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabled=0 is generated
event list	Opens a dialog that allows to choose which events must be added to the event list of this control.
exception-value	Specifies the value for the Exception-Value property
exclude event list	NONE... The Exclude-Event-List property is not generated. 0... Exclude-Event-List=0 is generated. 1... Exclude-Event-List=1 is generated.
export file format	Specifies the value for the Export-File-Format property.
export file name	Specifies the value for the Export-File-Name property.
font	Opens a dialog that allows the user to choose the control font.
foreground-color	Opens a dialog that allows the user to choose the control foreground color.
height-in-cells	TRUE...The Height-In-Cells style is generated FALSE... The Height-In-Cells style is not generated
help-id	Specifies the control Help-id.
hint	Specifies the value for the Hint property
id	Specifies the control id. This property is set automatically when the control is drawn.
item-to-add	Opens a dialog that allows the user to set text and icons for each single item
key	Specifies the value for the Key property.
layout-data	Opens a dialog that allows the user to choose the control resize rules.
line	Specifies the Y coordinate of the control as expressed in cells. This property is set automatically when the control is drawn
line pixels	Specifies the Y coordinate of the control as expressed in pixels. This property is set automatically when the control is drawn
lines	Specifies the control height as expressed in cells. This property is set automatically when the control is drawn
lines pixels	Specifies the control height as expressed in pixels. This property is set automatically when the control is drawn
lines unit	DEFAULT... Either CELLS or nothing is generated after the Lines value depending on the window’s “cell” property setting None... Neither CELLS nor PIXELS are generated after the Lines value CELLS... CELLS is generated after the Lines value PIXELS... PIXELS is generated after the Lines value
lm-on-columns	NONE... Lm-On-Columns is not generated TRUE... Lm-On-Columns=1 is generated FALSE... Lm-On-Columns=0 is generated
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
mass-update	TRUE... Mass-Update=1 is generated FALSE... Mass-Update property is not generated
max-height	Specifies the control maximum height as expressed in cells
max-width	Specifies the control maximum width as expressed in cells
min-height	Specifies the control minimum height as expressed in cells
min-width	Specifies the control minimum width as expressed in cells
mouse-wheel-scroll	Specifies the value for the Mouse-Wheel-Scroll property
no search	TRUE...The No-Search style is generated FALSE...The No-Search style is not generated
no-tab	TRUE...The No-Tab style is generated FALSE...The No-Tab style is not generated
notify dblclick	TRUE...The Notify-Dblclick style is generated FALSE...The Notify-Dblclick style is not generated
notify selchange	TRUE...The Notify-Selchange style is generated FALSE...The Notify-Selchange style is not generated
paged	TRUE...The Paged style is generated FALSE... The Paged style is not generated
pop up menu	Associates a pop-up menu with the control. The menu must have been drawn on the same screen.
row color patterns	Opens a dialog that allows the user to define a row color pattern
selection-index	Specifies the value for the Selection-Index property
selection-mode	SINGLE-SELECTION...Selection-Mode=1 is generated. SINGLE-INTERVAL-SELECTION...Selection-Mode=2 is generated. MULTIPLE-INTERVAL-SELECTION...Selection-Mode=4 is generated.
size	Specifies the control width as expressed in cells. This property is set automatically when the control is drawn
size pixels	Specifies the control width as expressed in pixels. This property is set automatically when the control is drawn
sort order	Specifies the value for the Sort-Order property. You can choose between: 0 PL-SORT-DEFAULT 1 PL-SORT-NONE 2 PL-SORT-NATIVE 3PL-SORT-NATIVE-IGNORE-CASE
tab order	Sets the ordinal position of the control in the Screen Section. This property is set automatically when the control is drawn
termination-value	Specifies the value for the Termination-Value property
unsorted	TRUE... The Unsorted style is generated FALSE... The Unsorted style is not generated
value	Specifies the value for the Value property
visible	NONE...Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
width-in-cells	TRUE...The Width-In-Cells style is generated FALSE... The Width-In-Cells style is not generated
Variables
color variable	Numeric variable that hosts the color value
column variable	Numeric variable that hosts the column value
css-style-name variable	Alphanumeric variable that hosts the css style associated with the control. It works only in a Web Direct 2 environment.
enabled variable	Numeric variable that hosts the enabled state
exception-value variable	Numeric variable that hosts the value for the Exception-Value property
help-id variable	Numeric variable that hosts the help id
hint variable	Alphanumeric variable that hosts the value for the Hint property
id variable	Numeric variable that hosts the control id
item-to-add variable	Alphanumeric variable that hosts the value for the Item-To-Add property
key variable	Alphanumeric variable that hosts the value for the Key property
layout-data variable	Numeric variable that hosts the control resize rules
lines variable	Numeric variable that hosts the lines value
line variable	Numeric variable that hosts the line value
max-height variable	Numeric variable that hosts the maximum height
max-width variable	Numeric variable that hosts the maximum width
min-height variable	Numeric variable that hosts the minimum height
min-width variable	Numeric variable that hosts the minimum width
size variable	Numeric variable that hosts the size value
value container	occurs item that hosts control items
value variable	Alphanumeric variable that hosts the value for the Value property
visible variable	Numeric variable that hosts the visible state
