WINDOW

Events
cmd-activate event	Allows the user to create a paragraph to handle the CMD-ACTIVATE event in the Procedure Division
cmd-close event	Allows the user to create a paragraph to handle the CMD-CLOSE event in the Procedure Division
msg-close event	Allows the user to create a paragraph to handle the MSG-CLOSE event in the Procedure Division
msg-deiconified event	Allows the user to create a paragraph to handle the MSG-DEICONIFIED event in the Procedure Division
msg-end-menu event	Allows the user to create a paragraph to handle the MSG-END-MENU event in the Procedure Division
msg-iconified event	Allows the user to create a paragraph to handle the MSG-ICONIFIED event in the Procedure Division
msg-init-menu event	Allows the user to create a paragraph to handle the MSG-INIT-MENU event in the Procedure Division
msg-menu-input event	Allows the user to create a paragraph to handle the MSG-MENU-INPUT event in the Procedure Division
ntf-resized event	Allows the user to create a paragraph to handle the NTF-RESIZED event in the Procedure Division
other event	Allows the user to create a custom paragraph
Exceptions
cmd-activate exception	Allows the user to create a paragraph to handle the CMD-ACTIVATE event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
cmd-close exception	Allows the user to create a paragraph to handle the CMD-CLOSE event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
ntf-resized exception	Allows the user to create a paragraph to handle the NTF-RESIZED event when the Accept terminates with crt status = 96. This is an alternative to the event procedures described above
other exception	Allows the user to create a custom paragraph
Procedures
After Create	Allows you to create a paragraph that will be executed after the display of the window
After InitData	Allows you to create a paragraph that will be executed after opening files and loading resources
After procedure	Allows the user to create a paragraph to handle the screen AFTER PROCEDURE
After procedure thru	Allows the user to optionally specify a THRU paragraph for the AFTER PROCEDURE.
After Routine	Allows you to create a paragraph that will be executed after the Accept on the screen
Before Create	Allows you to create a paragraph that will be executed before the display of the window
Before InitData	Allows you to create a paragraph that will be executed before opening files and loading resources
Before procedure	Allows the user to create a paragraph to handle the screen BEFORE PROCEDURE
Before procedure thru	Allows the user to optionally specify a THRU paragraph for the BEFORE PROCEDURE.
Before Routine	Allows you to create a paragraph that will be executed before the Accept on the screen
Event procedure	Allows the user to create a paragraph to handle the screen EVENT PROCEDURE
Exception procedure	Allows the user to create a paragraph to handle the screen EXCEPTION PROCEDURE
Link To	Allows the user to create a paragraph that will be executed when an exception occurs in the Accept
Properties
(name)	Specifies the window name. This property is automatically set as soon as the window is drawn
action	Allows you to set the initial state of the window. The choices are as follows: None (default) ACTION-MAXIMIZE ACTION-MINIMIZE
additional properties	Allows the user to specify additional properties and styles. The text you write here is generated as is and may generate compile errors if not correct.
allowing messages	Allows you to set the value for the ALLOWING MESSAGES clause. The choices are as follows: None (default) LAST THREAD ANY THREAD
auto fit	TRUE... the background image, if any, is resized to fit the window FALSE... the background image, if any, is not resized
auto minimize	TRUE... the AUTO-MINIMIZE style is generated FALSE... the AUTO-MINIMIZE style is not generated
auto-resize	TRUE... the AUTO-RESIZE style is generated FALSE... the AUTO-RESIZE style is not generated
background-color	Opens a dialog that allows the user to choose the window background color.
background image	Allows you to choose a picture that will be used as a background for the window
background intensity	None ... no background intensity clauses are generated in the DISPLAY WINDOW statement LOW... BACKGROUND-LOW is generated in the DISPLAY WINDOW statement HIGH... BACKGROUND-HIGH is generated in the DISPLAY WINDOW statement STANDARD... BACKGROUND-STANDARD is generated in the DISPLAY WINDOW statement
before time	Sets the timeout in hundreds of seconds for the Accept on this screen
bind to thread	TRUE... The BIND TO THREAD clause is generated FALSE... The BIND TO THREAD clause is not generated
boxed	TRUE... The BOXED clause is generated FALSE... The BOXED clause is not generated
cell-height	Sets the CELL HEIGHT value
cell measure	PIXELS ... the cell size is as expressed in pixels MEASURING CONTROL FONT... the font is used to calculate cell size
cell measuring control	None ... nothing is generated LABEL... CELL SIZE IS LABEL FONT is generated ENTRY-FIELD... CELL SIZE IS ENTRY-FIELD FONT is generated
cell measuring font	Allows you to choose a font to meausre the cell size:
cell measuring style	NONE... nothing is generated after CELL SIZE OVERLAPPED... the OVERLAPPED clause is generated after CELL SIZE SEPARATE... the SEPARATE clause is generated after CELL SIZE
cell-width	Sets the CELL WIDTH value
color	Opens a dialog that allows the user to choose the window color.
control font	Opens a dialog that allows the user to choose the control font.
controls uncropped	TRUE... The CONTROLS-UNCROPPED clause is generated FALSE... The CONTROLS-UNCROPPED clause is not generated
enabled	NONE...The Enabled property is not generated TRUE... Enabled=1 is generated FALSE...Enabeld=0 is generated
erase screen	TRUE... The ERASE clause is generated FALSE... The ERASE clause is not generated
foreground-color	Opens a dialog that allows the user to choose the window foreground color.
generate display statement	TRUE... The DISPLAY WINDOW statement is generated FALSE... The DISPLAY WINDOW statement is not generated
graphical	TRUE... The GRAPHICAL clause is generated FALSE... The GRAPHICAL clause is not generated
help-id	Specifies the control help-id.
icon	Opens a dialog that allows you to choose an image to be used as the window icon:
label-offset	Sets the value for the LABEL-OFFSET property

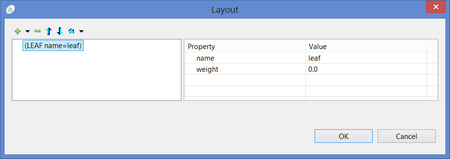

layout	Opens a dialog that allows you to define a layout for the Docking window.
layout manager	Allows you to choose the layout manager associated with the window. The choices are as follows: None (default) LM-RESIZE LM-SCALE
lines	Specifies the control height as expressed in cells
lines pixels	Specifies the control height as expressed in pixels
link to thread	TRUE... The LINK TO THREAD clause is generated FALSE... The LINK TO THREAD clause is not generated
lock	TRUE...Locks the control on the Screen Designer so that you cannot move it anymore by dragging it with the mouse. FALSE...You can move the control on the Screen Designer by dragging it with the mouse
main menu	Associates a menu bar with the window. The menu must have been drawn on the same screen.
max lines	Sets the value for the MAX-LINES property
max size	Sets the value for the MAX-SIZE property
min lines	Sets the value for the MIN-LINES property
min size	Sets the value for the MIN-SIZE property
modeless	TRUE... The MODELESS clause is generated FALSE... The MODELESS clause is not generated

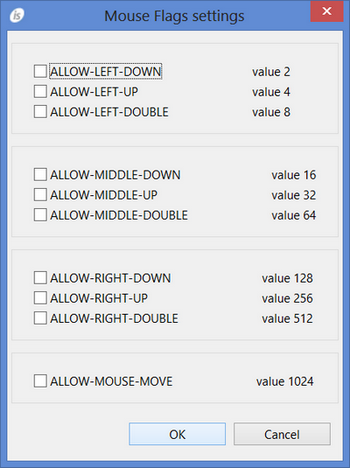

mouse flags	Opens a dialog that allows you to configure mouse flags
no close	TRUE... The NO-CLOSE clause is generated FALSE... The NO-CLOSE clause is not generated
pop up menu	Associates a pop-up menu to the window. The menu must have been drawn on the same screen.
resizable	TRUE...RESIZABLE is not generated. FALSE...RESIZABLE is generated.
screen column	Specifies the value of Screen Column property as expressed in cells.
screen column pixels	Specifies the value of Screen Column property as expressed in pixels.
screen line	Specifies the value of Screen Line property as expressed in cells.
screen line pixels	Specifies the value of Screen Line property as expressed in pixels.
scroll	TRUE...WITH NO SCROLL is not generated. FALSE...WITH NO SCROLL is generated.
size	Specifies the window width as expressed in cells.
size pixels	Specifies the window width as expressed in pixels.
system-menu	TRUE... WITH SYSTEM MENU is not generated FALSE...WITH SYSTEM MENU is generated
title	Specifies the window title
title-bar	TRUE... TITLE-BAR is not generated FALSE...TITLE-BAR is generated
unit	Allows you to choose the measuing unit. The choices are as follows: CELLS PIXELS
upon	Allows you to choose the MDI-PARENT window for the current MDI-CHILD window.

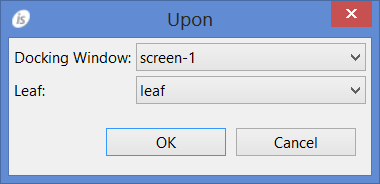

upon leaf	Opens a dialog that allows you to choose the destination leaf for the Dockable window.
user gray	TRUE... USER GRAY is not generated FALSE...USER GRAY is generated
user white	TRUE... USER WHITE is not generated FALSE...USER WHITE is generated
visible	NONE...The Visible property is not generated TRUE... Visible=1 is generated FALSE...Visible=0 is generated
window type	Allows you to choose the window type. The choices are as follows: STANDARD INITIAL INDEPENDENT FLOATING DOCKING DOCKABLE MDI-PARENT MDI-CHILD
wrap	TRUE... NO WRAP is not generated FALSE...NO WRAP is generated
Variables
allowing messages thread	Numeric variable that hosts the handle of the thread whose messages should be received
before time variable	Numeric variable that hosts the Accept timeout
cell-height variable	Numeric variable that hosts the value for the Cell Height property
cell-width variable	Numeric variable that hosts the value for the Cell Width property
color variable	Numeric variable that hosts the color value
enabled variable	Numeric variable that hosts the enabled state
layout manager variable	Numeric variable that hosts the value for the Layout-Manager property
lines variable	Numeric variable that hosts the lines value
max lines variable	Numeric variable that hosts the value for the Max-Lines property
max size variable	Numeric variable that hosts the value for the Max-Size property
min lines variable	Numeric variable that hosts the value for the Min-Lines property
min size variable	Numeric variable that hosts the value for the Min-Size property
mouse flags variable	Numeric variable that hosts the value for the Mouse-Flags property
size variable	Numeric variable that hosts the size value
title variable	Numeric variable that hosts the value for the Title property
visible variable	Numeric variable that hosts the visible state
window handle	Numeric variable that hosts the window handle
